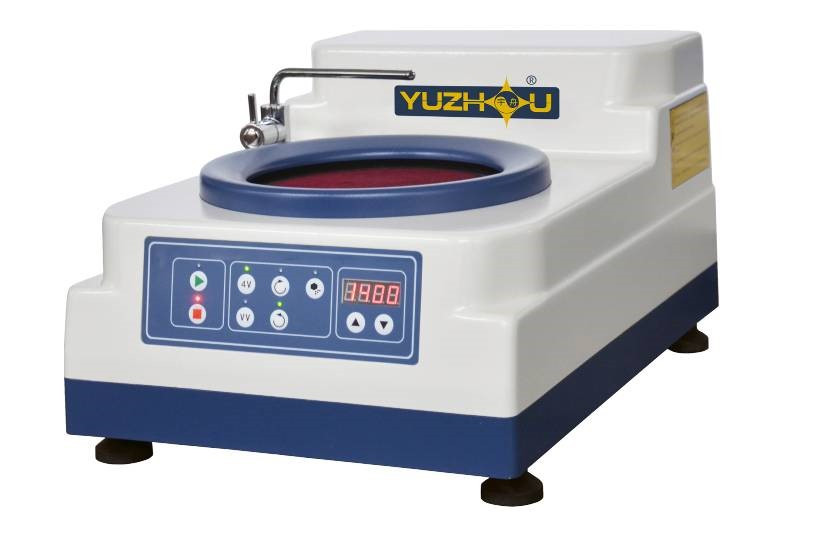

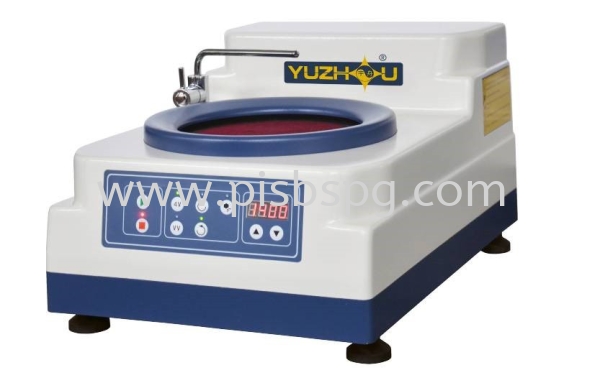

YMP-1 Metallographic Sample Grinding & Polishing Machine (Stepless)
YMP-1 Metallographic Sample Grinding & Polishing Machine (Stepless) Grinding/ Polishing, Auto Mount Press & Abrasive Cutting Machine Hardness Tester Selangor, Malaysia, Kuala Lumpur (KL), Shah Alam Supplier, Suppliers, Supply, Supplies | Peacock Industries Sdn Bhd

In the metallographic sample preparation, pre-grinding, polishing and grinding are the indispensable procedures. This machine is produced with ABS sewage collection plate and cover and is the latest product with a new and beautiful appearance. This machine is controlled by single chip microcomputer, with grinding disc stepless speed regulation and digital tube display. The motor is DC brushless motor and don’t need to replace the brush, used for a long time. The machine is non-toxic painted. Strong large support chassis design ensures the precision rotary balance. Powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing almost without damage and the super mute design brings a good experience. It supports for fast disc replacing system, with the use of elasticity. With water flushing, it makes sure the cleanness of the machine. Features: low noise, convenient operation, beautiful appearance, safe use. This machine can be adapted to various materials preparation of test samples, and therefore it is the ideal equipment for metallographic sample preparation.

Main Parameters:

Grinding and Polishing Disc Diameter 230mm
Abrasive Paper Diameter 230mm
Rotating Speed 1001400r/min, stepless; Or four speed 300r/min, 600r/min, 900r/min, 1400r/min
Rotating Direction Clockwise or Anticlockwise
Electromotor DC brushless motor, 220V, 600W
Dimensions 420×623×320mm
Weight 30kg
