STRIKE 285
STRIKE 285 Rotary Evaporator Selangor, Malaysia, Kuala Lumpur (KL), Shah Alam Supplier, Suppliers, Supply, Supplies | Peacock Industries Sdn Bhd

Configurations in standard glassware

Type : Slanting glassware, Vertical glassware £¨ Steam sinking  ) , Vertical glassware £¨ Steam rising )

Configurations in plastic coated safety glassware

Type : Slanting glassware, Vertical glassware £¨ Steam sinking ) , Vertical glassware £¨ Steam rising ) , Dry Ice Condensation )

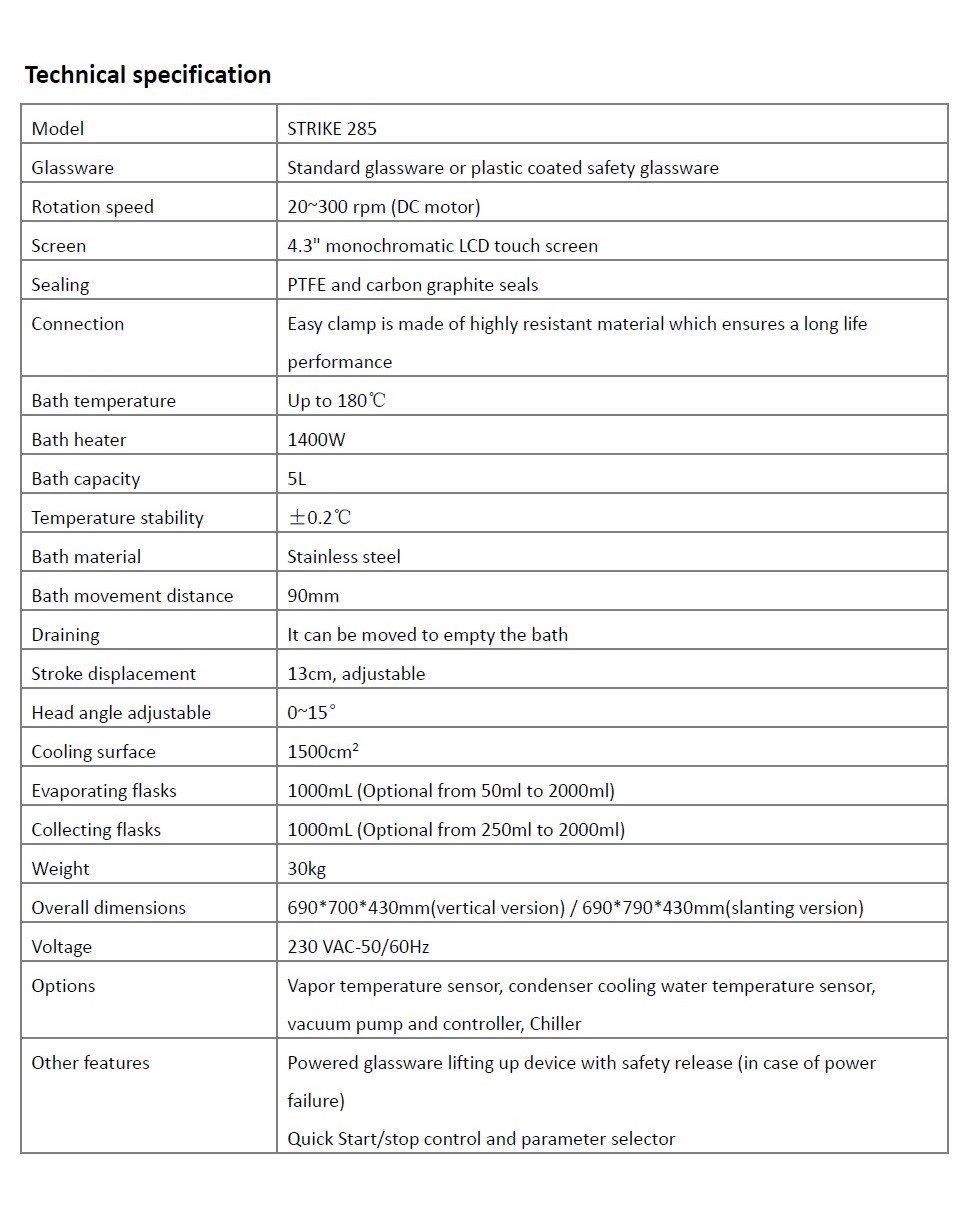

​Techincal Specification:

Glassware : Standard glassware or Plastic coated glassware
Rotation Speed : 20 - 300 rpm ( DC motor )
Screen : 4.3'' monochromatic LCD touch screen
Sealing : PTFE and Carbon graphite seals
Connection : Easy clamp is made of highly resistant materialwhich ensures a long life performance
Bath temperatire : Up to 180 C
Bath heater : 1400W
Bath capacity : 5L
Temperature stability : + - 0.2 C
Bath material : Stainless Steel
Bath movement distance : 90 mm
Draining : It can be moved to empty the bath
Stroke displacement : 13 cm , adjustable
Head angle adjustable : 0 - 15 deg
Cooling surface : 1500 cm2
Evaporating flasks : 1000 mL ( optional from 50 ml to 2000 ml )
Collecting flasks : 1000 mL ( optional from 250 ml to 2000 ml )
Weight : 30 kg
Overall dimensions : 690*700*430 mm ( vertical version ) / 690*790*430 mm( slanting version )
Voltage : 230 VAC 50 / 60 Hz
Options : Vapor temperature sensor , Condensor cooling water temperature sensor, Vacuum pump and controller, Chiller
Other features : Poowered glassware lifting up device with safety release ( in case of power failure )
                          Quick start / stop controland parameter selector
